Location: Suqian, Shuyang
Scale: 11,000 ㎡
Time: 2023
Project Introduction:
This project is the construction of a large-scale purification workshop dedicated to titanium plating on plates for Suqian Shuyang Yian Teng. The total area is 11,000 square meters, and the main structure is a two-story building. The project integrates high-precision decoration and key environmental protection system integration (waste gas/wastewater treatment) for steel structure engineering. It focuses on addressing the core pain point of the titanium plating industry on plates - the high corrosion pollution caused by titanium molecules, and provides a professional solution for the entire process
Core construction content and technological innovation:

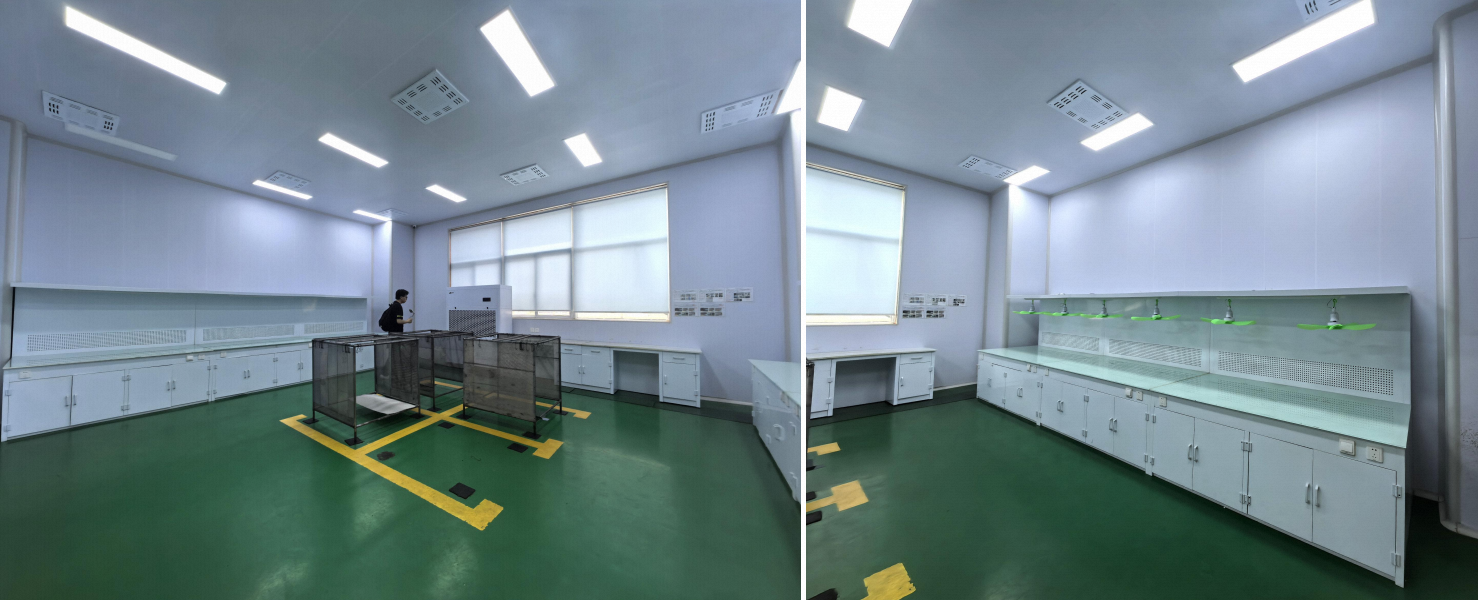

`High-standard purification workshop (core breakthrough)
1. Anti-corrosion design: In response to the strong corrosivity of titanium molecules, special anti-corrosion materials (such as acid and alkali resistant epoxy flooring, antioxidant purification board wall finish) are used to construct a clean space. 2. Precise ventilation and drainage system: Through precise calculation of air volume, pressure, and airflow organization, air quality standards are achieved (10,000-grade constant temperature and humidity, using an imported rotor initial system). Key areas are equipped with high-efficiency negative pressure suction to ensure immediate collection and targeted treatment of titanium dust and volatile pollutants, eliminating cross-contamination. 3. Innovative workstation design: The core highlight is the workstation's integration of "integrated negative pressure suction technology". The principle is analogous to that of an efficient range hood, forming a closed negative pressure chamber at the source of pollution. Coupled with a multi-layer filtration and purification system, the suction efficiency far exceeds conventional standards, significantly reducing the pollution concentration on the work surface.

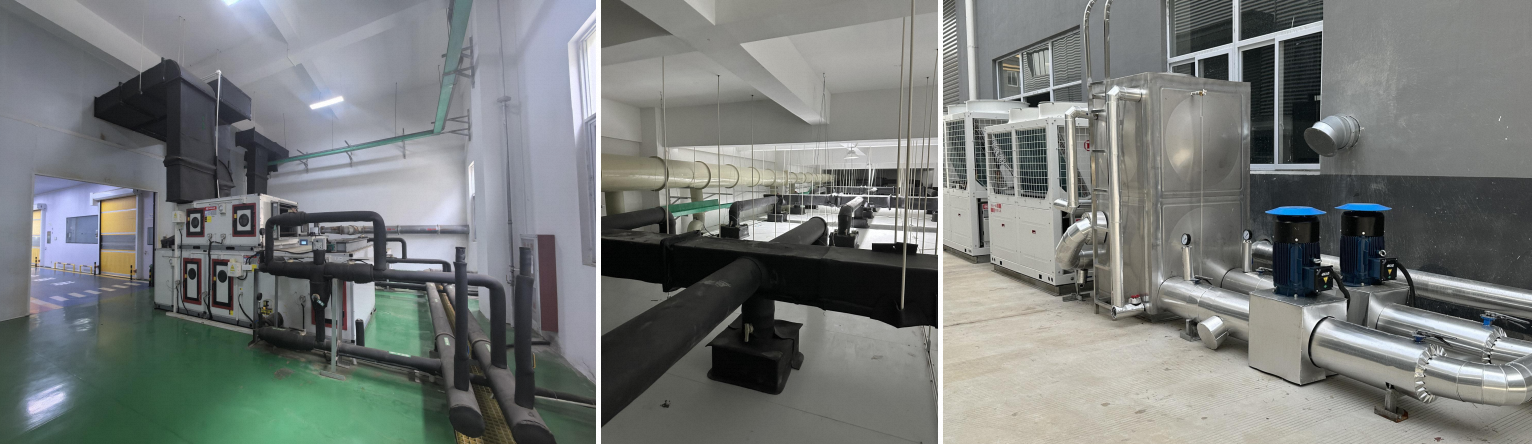

`Professional environmental protection treatment system:
1. Exhaust gas treatment: Equip with large treatment towers and pipe networks to specifically treat acidic exhaust gas containing titanium, ensuring strict control of emission indicators. 2. Wastewater treatment: Build facilities for classified collection and advanced treatment to effectively purify wastewater containing heavy metals, acids, and alkalis, in compliance with environmental regulations.

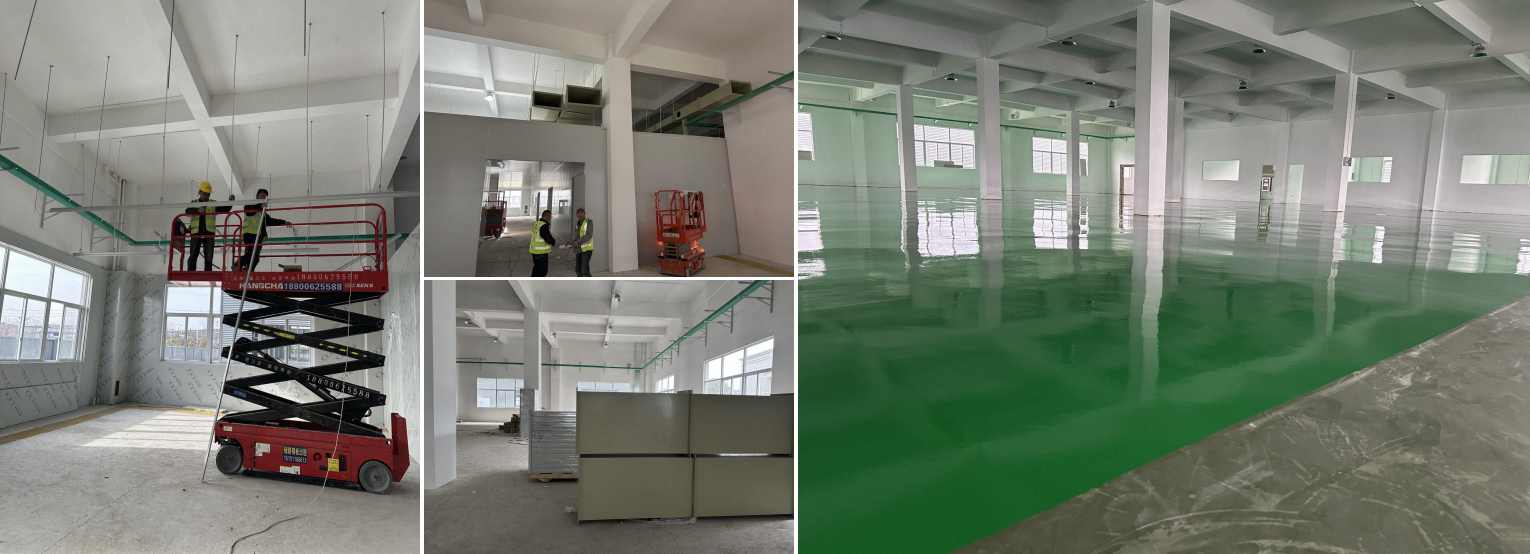

Construction of integrated factory building:

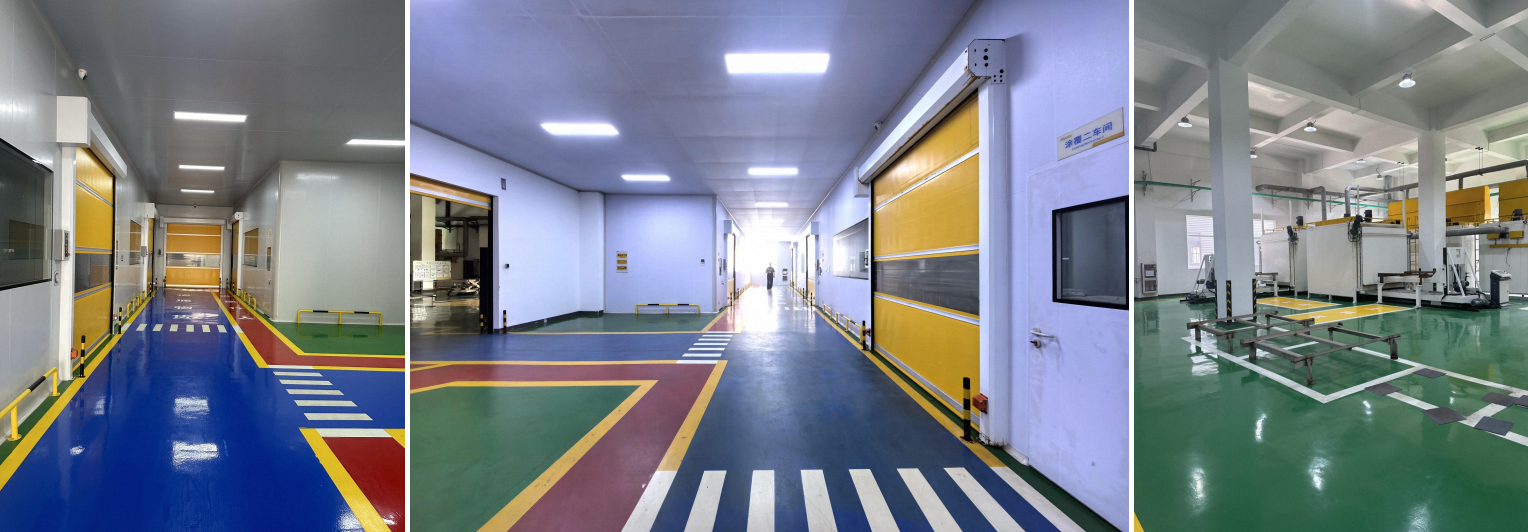

1. Main structure: It encompasses the construction of the internal steel structure and functional zoning. 2. Modern decoration: The passageway is paved with wear-resistant colored sand flooring, and equipped with fast-acting roller shutter doors and a standardized signage system

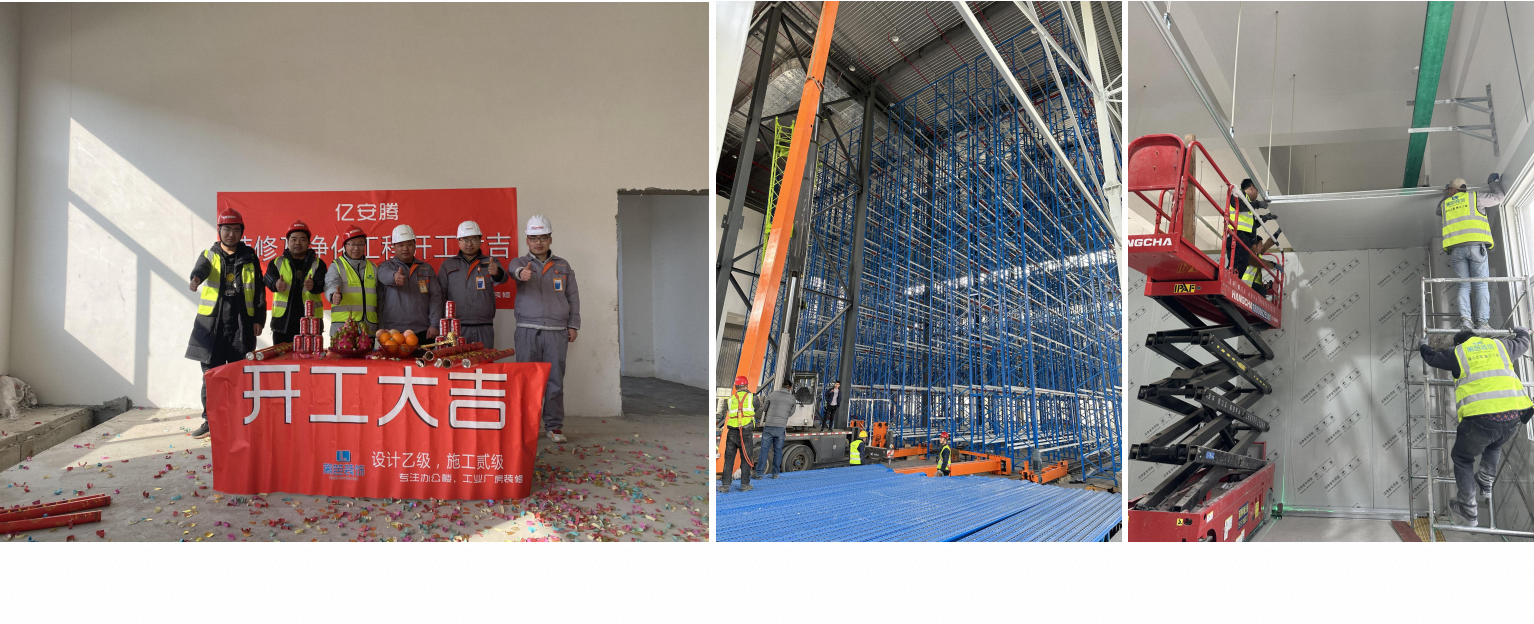

3. Standardized construction: Implement strict on-site management and provide safety facilities (guardrails, lighting).
Project value:
The project was successfully delivered in 2023. The Yian Teng factory not only overcame the challenge of titanium pollution control but also, leveraging its precise calculation capabilities of purification systems, innovative equipment research and development strength, and integrated environmental protection treatment advantages, has become a benchmark base for high-level and high-reliability production in the domestic titanium plating industry, effectively ensuring product quality and ecological safety.
